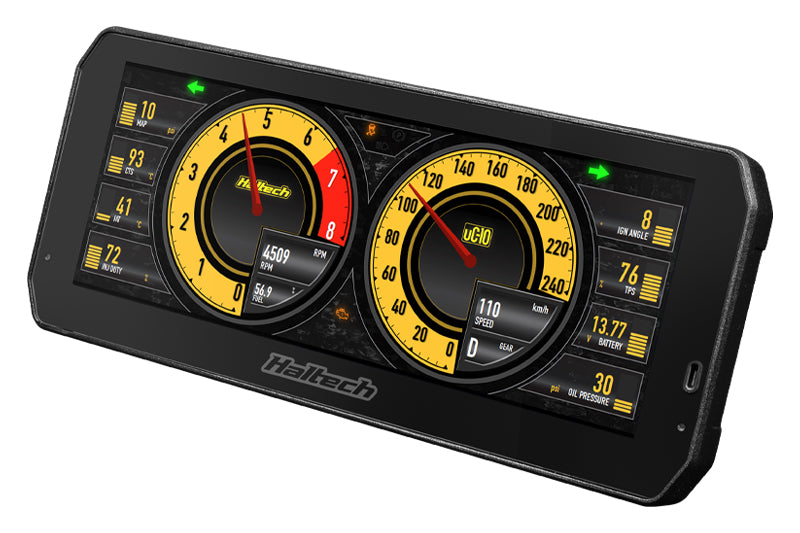

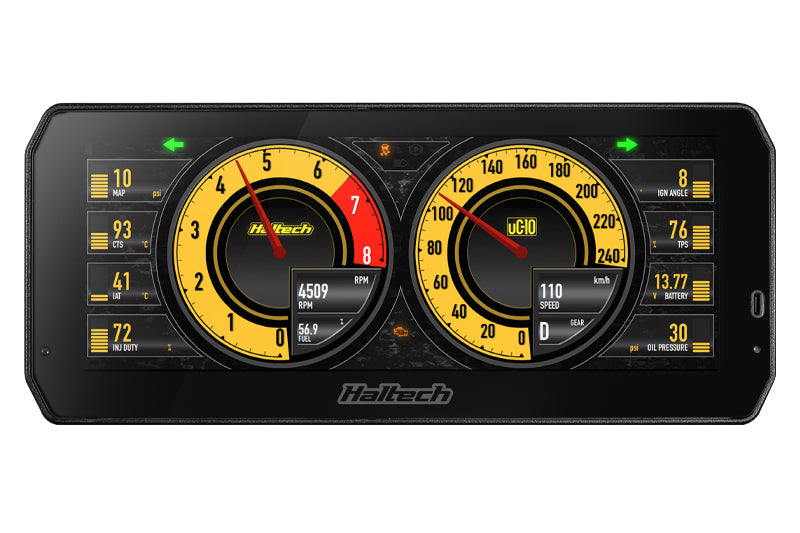

Haltech uC-10 Digital Dash 10" (HT-068000)

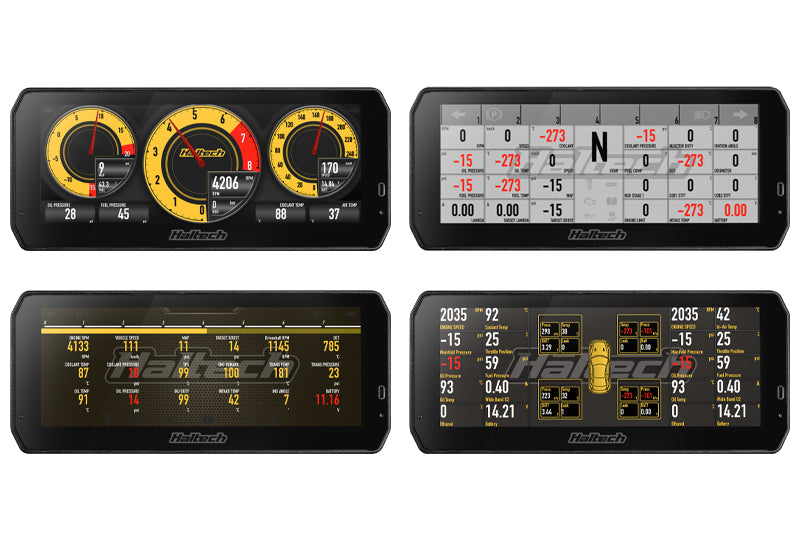

Take full control of your vehicle's data with the Haltech uC-10 Digital Dash. A crisp, full-colour 10" screen that's fully customisable in Haltech's NSP software — design your own layouts, arrange gauges and show exactly the data you want.

The uC-10 works with Haltech CAN, OBDII and a range of popular aftermarket ECUs, or can be wired in as a complete stand-alone unit. Its I/O capacity also makes it a great central data hub or I/O expander in an existing Haltech setup.

Features

• Full screen customisation with Haltech NSP software
• Display: full-colour, optically bonded TFT, 1280 x 480 resolution, 600+ lumens
• Viewing angle: 70° minimum (vertical and horizontal)
• Protection: IP64 rated (dust-tight, splash resistant)
• Data logging: 512 MB on-board looped logging
• Odometer: 6-digit
• Sensors: 2 x ambient light sensors

Inputs & outputs

• 10 x user-configurable analogue voltage inputs (AVIPs)
• 4 x user-configurable digital pulsed outputs (DPOs)
• 4 x user-configurable switched pulsed inputs (SPIs)
• 1 x dedicated tacho input
• 1 x dedicated alternator excite

Compatibility

Suits all current Haltech ECUs via CAN. OBDII ready (optional OBDII to CAN cable HT-135003 required for OBDII plug-and-play). Plug-and-play compatible with these aftermarket ECU protocols:

• Hondata
• Link G4
• MaxxECU
• Microtech
• MoTeC M1 Series
• MoTeC Hundred Series (M400, M600, M800 gold box ECUs)
• Syvecs

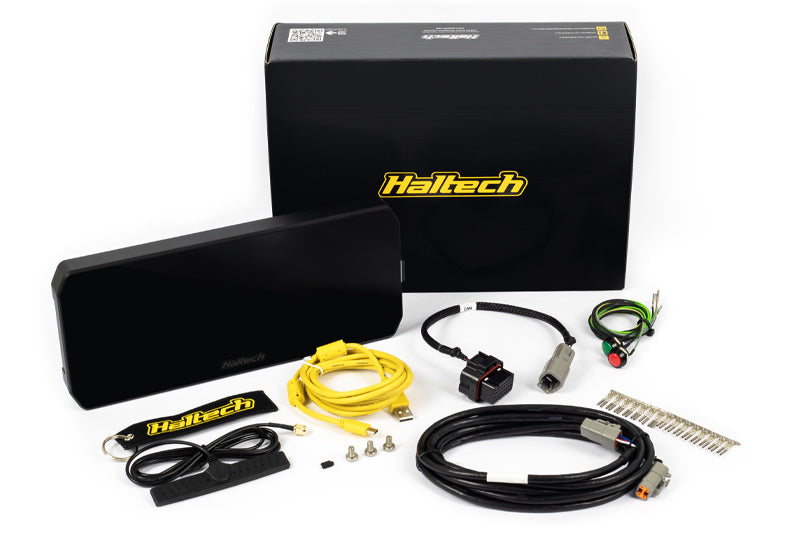

What's included

• 1 x Haltech uC-10 Digital Dash

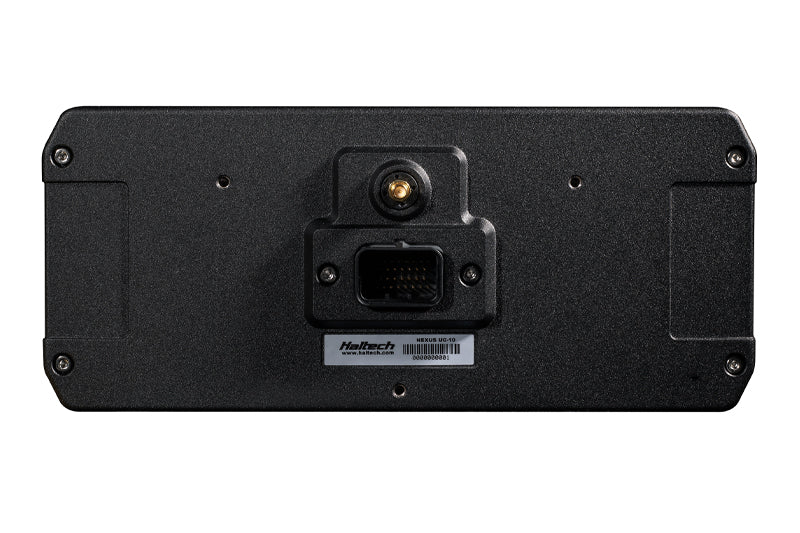

• 1 x 34-pin connector (same as HT-131001)
• 1 x Haltech DTM4 to DTM4 CAN cable, 3.0 m
• 1 x USB-C cable
• 3 x M5 x 8 mm mounting screws
• 2 x momentary switches with pre-terminated 800 mm 22AWG cable
• 1 x glass-mount Wi-Fi antenna (2.4 GHz)
• Haltech fabric keytag, quick start guide and stickers

Haltech part number: HT-068000
